• Tow/haul mode selector, instrument panel-mounted
• Rear-wheel drive
• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 150 amps (Included with (C69) rear air conditioning.)
• Frame, ladder-type
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Exhaust, aluminized stainless-steel muffler and tailpipe

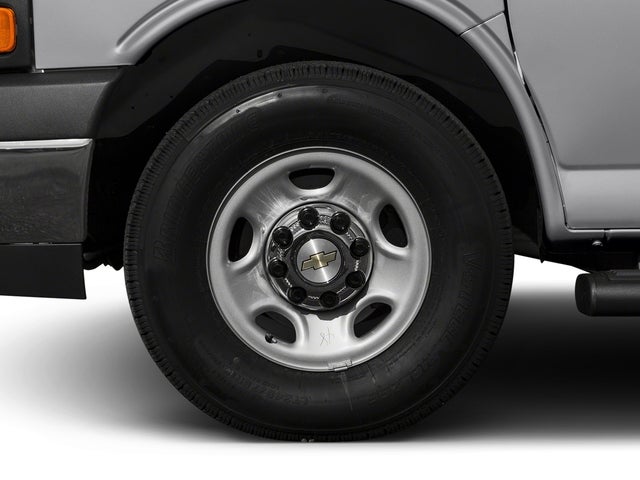

• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare
• Tires, front LT245/75R16E all-season, blackwall
• Tires, rear LT245/75R16E all-season, blackwall
• Wheel trim, chrome center cap
• Tire, spare LT245/75R16E all-season, blackwall
• Body, standard
• Chrome Appearance Package
• Bumpers, front and rear chrome with step-pad (Included with (ZR7) Chrome Appearance Package.)
• Grille, chrome with dual composite halogen headlamps (Included and only available with (ZR7) Chrome Appearance Package.)
• Headlamps, halogen
• Mirrors, outside manual, Black
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Glass, swing-out side door windows
• Glass, swing-out rear cargo door windows
• Glass, enhanced-technology, rearmost side windows. 3-layer special glass is designed to help reduce the risk of ejection during a crash
• Glass, full-body window package (Includes (A18) swing-out rear cargo door window glass and (A19) swing-out side door window glass.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front
• Door, swing-out passenger-side, 60/40 split

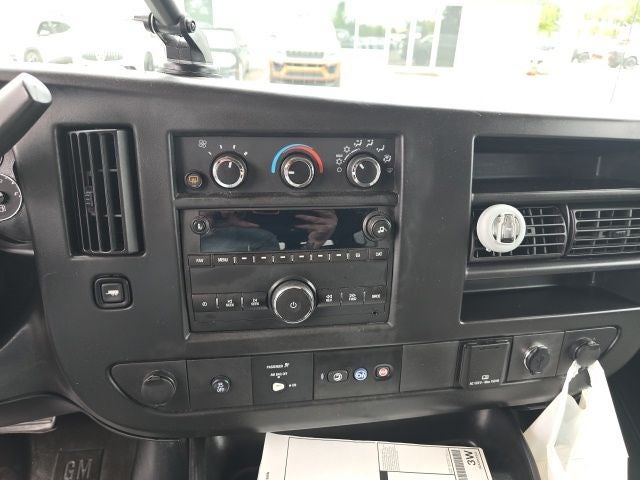

• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (USR) USB port.)
• OnStar 4G LTE and built-in Wi-Fi hotspot to connects to the internet at 4G LTE speeds, includes OnStar Data Trial for 3 months or 3GB (whichever comes first) (Included and only available with (UE1) OnStar. Visit www.onstar.com for coverage map, details and system limitations. Services vary by model. OnStar acts as a link to existing emergency service providers. Not all vehicles may transmit all crash data. Available Wi-Fi requires compatible mobile device, active OnStar service and data plan. Data plans provided by AT&T.)

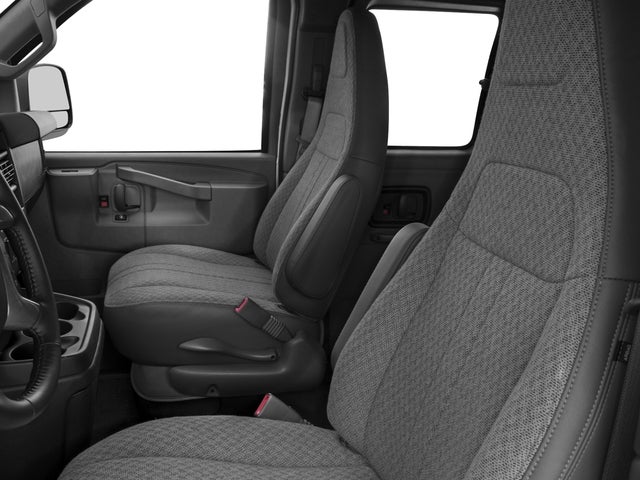

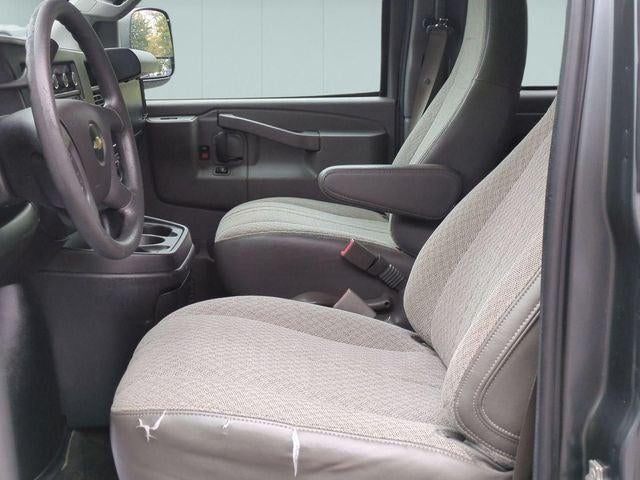

• Seats, front bucket with custom cloth trim head restraints and inboard armrests (Requires (**G) interior trim. When ordering a seating arrangement that includes rear seats, includes rear bench seats with Custom Cloth trim. Head restraints are not available on rear bench seats.)

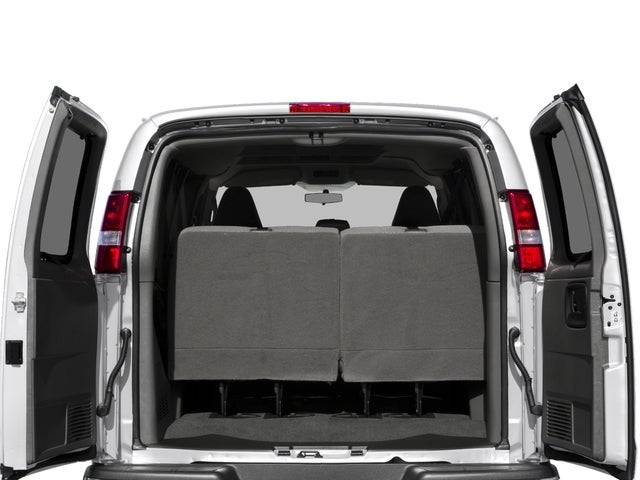

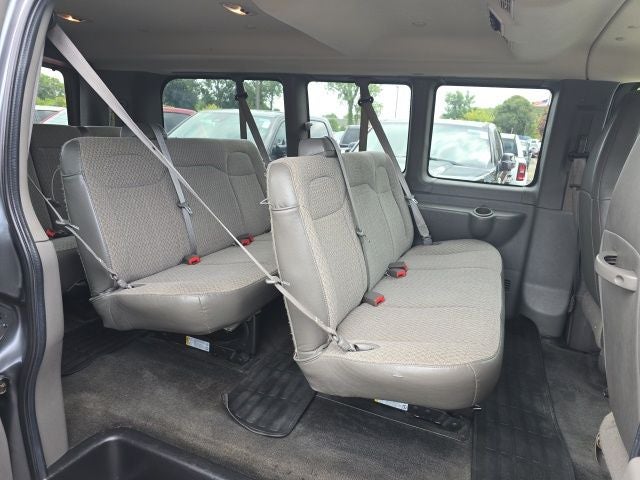

• Seating, 12-passenger, (2-3-3-4 seating configuration) 4-passenger seat is a 50/50 split, 2-piece configuration
• Console, deluxe with swing-out storage bin
• Power outlet, 120-volt
• Floor covering, full-floor color-keyed carpeting with front and rear rubberized vinyl floor mats
• Steering wheel steel sleeve column with theft-deterrent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Compass, 8-point digital located in the Driver Information Center (Included and only available with (C69) rear air conditioning.)
• Door locks, power with lock-out protection
• Remote Keyless Entry with 2 transmitters and remote panic button
• Cruise control
• Theft-deterrent system, vehicle, PASS-Key III
• Air conditioning, single-zone manual
• Air conditioning, rear
• Heater, rear auxiliary
• Defogger, front and side windows
• Mirror, inside rearview manual day/night (Available with (UVC) Rear Vision Camera only when (UI8) Chevrolet MyLink radio is ordered.)
• Headliner, cloth
• Visors, driver and front passenger, padded with cloth trim and dual vanity mirrors, illuminated on passenger-side
• Assist handles, driver and right-front passenger
• Lighting, interior with 2 dome lights defeat switch and door handle-activated switches
• Lighting, auxiliary with reading and underhood lights
• OnStar Basic plan for 5 years includes limited vehicle mobile app features, Monthly Diagnostics Report and Dealer Maintenance Notification (Basic Plan available for 5 years from the date of vehicle delivery and is transferable. Does not include Emergency, Security or Navigation services.)

• StabiliTrak, traction assistance and vehicle stability enhancement system
• Door beams, steel-side
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, driver and right front passenger seat-mounted side-impact and head curtain side-impact, provides coverage for first 3-rows only. Enhanced-technology glass is provided for the fourth and fifth rows (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bag deactivation switch, frontal, passenger side (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar Guidance plan for 3 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation, Advanced Diagnostics and more (trial excludes Hands-Free Calling) (Fleet orders receive a 6-month trial. Visit www.onstar.com for coverage map, details and system limitations. Services vary by model. OnStar acts as a link to existing emergency service providers. Not all vehicles may transmit all crash data.)
• Child seat anchors all three passenger rear seats have four anchors and two tethers
• Tire Pressure Monitoring System (does not apply to spare tires)

LT PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER AND USB PORT

• includes seek-and-scan
• digital clock
• TheftLock
• random select
• auxiliary jack and 2 front door speakers

TRAILERING EQUIPMENT, HEAVY-DUTY

• 4-pin/7-pin sealed connector (Includes (UY7) trailering provisions
• trailering wire harness only.)

ENGINE, VORTEC 4.8L V8 SFI

• (285 hp [212.5 kW] @ 5400 rpm
• 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (Includes external engine oil cooler. (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode and internal transmission oil cooler Includes external engine oil cooler. (STD)

SEATING, 12-PASSENGER, (2-3-3-4 SEATING CONFIGURATION)

• 4-passenger seat is a 50/50 split
• 2-piece configuration (STD)

PAINT, SOLID

• (STD)

• 12-Passenger Seating (2-3-3-4 Seating Configuration)
• 16' X 6.5' Steel Wheels
• 220 Amps Alternator
• 3.42 Rear Axle Ratio
• 6-Way Power Driver Seat Adjuster
• 8-Point Digital Compass
• 8,600 lbs (3,901 Kgs) GVWR
• Cyber Gray Metallic
• Electric Rear-Window Defogger
• Electronic 6-Speed Heavy Duty Automatic Transmission with Overdrive
• Federal Emissions Requirements
• Front and Rear Chrome Bumpers with Step-Pad
• Front LT245/75R16E AS BW Tires
• Heavy-Duty Rear Locking Differential
• High and Low Dual-Note Horn
• Inside Rearview Mirror with Rear Vision Camera Display
• Medium Pewter
• Power-Adjustable Black Outside Heated Mirrors
• Rear Auxiliary Heater
• Rear LT245/75R16E AS BW Tires
• Rear Vision Camera
• Spare LT245/75R16 AS BW Tire
• Vortec 4.8L V8 SFI Engine
• AM/FM Stereo with MP3 Player/seek and Scan
• Chrome Grille
• Convenience Package
• Heavy-Duty Trailering Equipment
• Preferred Equipment Group 1LT
• 12-Passenger Seating (2-3-3-4 Seating Config)
• 12V power outlets 2 12V power outlets
• 150 Amp Alternator
• 2 Speakers
• 3-point seatbelt Rear seat center 3-point seatbelt
• 3rd row seats: bench
• 4-Wheel Disc Brakes
• 4th-Row Bench Seat
• ABS brakes
• ABS Brakes 4-wheel antilock (ABS) brakes
• ABS Brakes Four channel ABS brakes
• Accessory power Retained accessory power
• Air Conditioning
• Air conditioning Yes
• Alternator Type Alternator
• AM/FM radio
• AM/FM Stereo w/MP3 Player
• Antenna Fixed audio antenna
• App Link Smart device integration OnStar Basic w/RemoteLink smart device app link
• Armrests front driver Driver seat armrest
• Armrests front passenger Front passenger seat armrest
• Audio theft deterrent Audio system theft deterrent
• Auto door locks Auto-locking doors
• Auto headlights Auto on/off headlight control
• Aux input jack Auxiliary input jack
• Auxiliary Lighting
• Auxiliary rear heater
• Basic warranty 36 month/36,000 miles
• Battery charge warning
• Battery run down protection
• Battery type Lead acid battery
• Bench seats Third-row bench seat
• Beverage holders Front beverage holders
• Body panels Fully galvanized steel body panels with side impact beams
• Brake type 4-wheel disc brakes
• Bumper rub strip front Black front bumper rub strip
• Bumper rub strip rear Black rear bumper rub strip
• Bumpers front Chrome front bumper
• Bumpers rear Chrome rear bumper
• Bumpers: chrome
• Cargo floor type Carpet cargo area floor
• Cargo light Cargo area light
• Child door locks Manual rear child safety door locks
• Chrome Appearance Package
• Climate control Manual climate control
• Clock Digital clock
• Compass
• Convex spotter Driver and passenger convex spotter mirrors
• Corrosion perforation warranty 72 month/100,000 miles
• Cruise Control

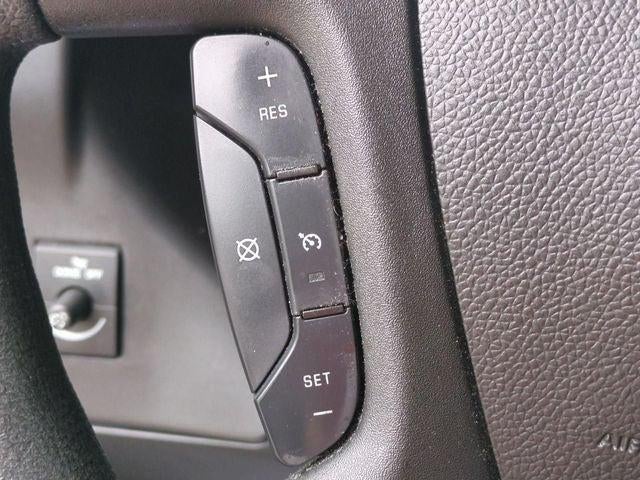

• Cruise control Cruise control with steering wheel mounted controls
• Custom Cloth Seat Trim
• Cylinder head material Aluminum cylinder head
• Day/Night rearview mirror
• Delay off headlights Delay-off headlights
• Delay-off headlights
• Deluxe Console w/Swing Out Storage Bin
• Door bins front Driver and passenger door bins
• Door handle material Black door handles
• Door locks Power door locks with 2 stage unlocking
• Door mirror style Black door mirrors
• Door mirror type Standard style side mirrors
• Door mirrors Power door mirrors
• Drive type Rear-wheel drive
• Driver & Front Passenger Cloth Padded Visors
• Driver door bin
• Driver information center
• Driver seat direction Driver seat with 8-way directional controls
• Driver vanity mirror
• Driver's Seat Mounted Armrest
• DRL preference setting
• Dual Composite Halogen Headlamps
• Dual front impact airbags
• Dual front side impact airbags
• Electronic Stability Control
• Electronic stability control StabiliTrak electronic stability control system
• Emergency communication system
• Emergency SOS Capable Vehicle integrated emergency SOS system
• Emissions Federal emissions
• Emissions tiers Tier 2 Bin 8 emissions
• Engine block material Iron engine block
• Engine compartment light
• Engine Configuration Vortec V8
• Engine cooler Engine oil cooler
• Engine hour meter
• Engine Location Front mounted engine
• Engine Mounting direction Longitudinal mounted engine
• Engine Short Vortec 4.8L V-8
• Engine Vortec 4.8L V-8 variable valve control, regular gasoline, engine with 285HP
• Engine/electric motor temperature gauge
• External memory Chevrolet MyLink external memory control
• First-row windows Power first-row windows
• Floor console Partial floor console
• Floor console storage Covered floor console storage
• Floor coverage Full floor coverage
• Floor covering Full carpet floor covering
• Floor mats Rubber front and rear floor mats
• Folding door mirrors Manual folding door mirrors
• Fourth-row seat facing Front facing fourth-row seat
• Fourth-row seat fixed or removable Removable fourth-row seats
• Fourth-row seat type Fourth-row bench seat
• Fourth-row seats folding 50-50 folding fourth-row passenger seat
• Front & Rear Chrome Bumpers w/Step-Pad
• Front anti-roll bar
• Front anti-roll Front anti-roll bar
• Front beverage holders
• Front Bucket Seats
• Front head restraints Fixed front seat head restraints
• Front impact airbag driver Driver front impact airbag
• Front impact airbag passenger Cancellable front passenger air bag
• Front reading lights
• Front seat upholstery Cloth front seat upholstery
• Front seatback upholstery Vinyl front seatback upholstery
• Front side impact airbag driver Seat mounted side impact driver airbag
• Front side impact airbag passenger Seat mounted side impact front passenger airbag
• Front wheel independent suspension
• Fuel Type Regular unleaded
• Full-Floor Color-Keyed Carpeting
• Fully automatic headlights
• Gearshifter material Urethane gear shifter material
• Grille style Chrome grille
• Headlight type Reflector headlights
• Headlights Halogen headlights
• Headlights on reminder
• Headliner coverage Full headliner coverage
• Headliner material Cloth headliner material
• Heated door mirrors Heated driver and passenger side door mirrors
• Height adjustable seatbelts Front height adjustable seatbelts
• High & Low Dual-Note Horn
• High mount stop light High mounted center stop light
• Ignition Spark ignition system
• Ignition type Mechanical
• Illuminated entry
• Immobilizer
• Inside Rearview Mirror w/Rr Vision Camera Display
• Instrumentation display Analog instrumentation display
• Interior 120V AC power outlets 1 interior 120V AC power outlet
• Internet access OnStar 4G LTE mobile hotspot internet access
• Key in vehicle warning
• Keyfob cargo controls Keyfob trunk control
• Keyfob keyless entry
• Laminated window Laminated side window glass
• License plate front bracket Front license plate bracket
• Lock-up transmission
• Low level warnings Low level warning for fuel
• Low tire pressure warning
• Low tire pressure warning Tire specific low air pressure warning
• Maintenance warranty 24 month/24,000 miles
• Manual passenger seat controls Passenger seat manual reclining and fore/aft control
• Multiple headlights Multiple enclosed headlights
• Number of airbags 6 airbags
• Number of beverage holders 3 beverage holders
• Number of doors 3 doors
• Number of first-row screens 1 total number of 1st row displays
• Occupancy sensor Airbag occupancy sensor
• Occupant sensing airbag
• Oil pressure gauge
• One-touch down window Driver one-touch down window
• Overdrive transmission
• Overhead airbag
• Overhead airbags Curtain first, second and third-row overhead airbags
• Paint Metallic paint
• Panic alarm
• Passenger cancellable airbag
• Passenger door bin
• Passenger doors rear right Split swing-out right rear passenger door
• Passenger seat direction Front passenger seat with 4-way directional controls
• Passenger seat mounted armrest
• Passenger vanity mirror
• Power driver seat controls Driver seat power cushion tilt, fore/aft control and height adjustable control
• Power steering
• Power windows
• Powertrain type ICE
• Powertrain warranty 60 month/60,000 miles
• Radiator
• Radio AM/FM
• Radio: AM/FM Stereo w/MP3 Player/Seek & Scan
• Reading Lights
• Rear Air
• Rear air conditioning
• Rear bumper step
• Rear camera Rear mounted camera
• Rear cargo door Split swing-out rear cargo door
• Rear climate control Rear climate control system with separate controls
• Rear headliner/pillar ducts Rear headliner/pillar climate control ducts
• Rear locking differential Automatic rear locking differential
• Rear reading lights
• Rear seat direction Front facing rear seat
• Rear seat upholstery Cloth rear seat upholstery
• Rear seatback upholstery Carpet rear seatback upholstery
• Rear Springs Regular grade rear springs
• Rear under seat ducts Rear under seat climate control ducts
• Rear window defroster
• Rear window trim Black rear window trim
• Rear windshield Vented rear windshield
• Reclining Front Bucket Seats w/Inboard Armrests
• Remote Keyless Entry
• Remote panic alarm
• Roadside warranty 60 month/60,000 miles
• Running lights Daytime running lights
• Seating capacity 12
• Second-row seats fixed or removable Removable second-row seats
• Second-row seats Second-row bench seat
• Second-row windows Manually vented second-row windows
• Seek scan
• Selectable mode transmission
• Service interval warning Service interval indicator
• Shock absorbers Gas-pressurized shock absorbers
• Spare tire Full-size spare tire with steel wheel
• Spare tire location Crank-down spare tire
• Speakers number 2 speakers
• Speakers Standard grade speakers
• Special paint Monotone paint
• Speed control
• Split front seats Bucket front seats
• Springs front Front coil springs
• Springs rear Rear leaf springs
• Steering Hydraulic power-assist steering system
• Steering type Re-circulating ball steering
• Steering wheel material Urethane steering wheel
• Steering wheel tilt Manual tilting steering wheel
• Sun visor strip
• Suspension ride type front Independent front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension Standard ride suspension
• Suspension type front Short and long arm front suspension
• Suspension type rear Leaf spring rear suspension
• Tachometer
• Tailgate control Tailgate/power door lock
• Tailpipe Partial stainless steel single exhaust
• Third-row seat facing Front facing third-row seat
• Third-row seat fixed or removable Removable third-row seats
• Third-row seat upholstery Cloth rear seat upholstery
• Third-row seatback upholstery Carpet third-row seatback upholstery
• Third-row windows Fixed third-row windows
• Tilt Steering Wheel
• Tinted windows Deep tinted windows
• Tires LT245/75SR16 AS BSW front and rear tires
• Towing wiring harness Trailer wiring harness
• Traction control
• Traction control All-speed ABS and driveline traction control
• Transmission 6-speed automatic
• Transmission oil cooler
• Transmission Type Automatic
• Trip computer
• Trip odometer
• Turn-by-turn nav OnStar Turn-by-Turn Navigation
• Underhood Lights
• USB Port Audio System Feature
• USB ports 1 USB port
• Variable panel light Variable instrument panel light
• Variably intermittent wipers
• Vehicle tracker Vehicle tracker with vehicle slowdown
• Ventilated brakes Front and rear ventilated disc brakes
• Visor driver mirror Driver visor mirror
• Visor illuminated passenger mirror Illuminated passenger visor mirror
• Visor passenger mirror Passenger visor mirror
• Voltmeter
• Wheel covers Wheel hub covers
• Wheel Trim w/Chrome Center Caps
• Wheels 16 x 6.5-inch front and rear gray steel wheels
• Window Trim Black side window trim
• Windshield trim Black windshield trim
• Wipers Variable intermittent front windshield wipers

• Vehicle
• Rear Door Type: Swing-Out
• Mileage
• Fuel Economy Est-Combined (MPG): 13 (2016)
• EPA Fuel Economy Est - City (MPG): 11 (2016)
• EPA Fuel Economy Est - Hwy (MPG): 17 (2016)
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 5360
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Gross Combined Wt Rating (lbs): 14600
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 870
• Maximum Trailering Capacity (lbs): 9800
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Drive
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 5360
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 5360
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.18
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Spare Tire Order Code: ZLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2060
• Rear Tire Capacity (lbs): 2680
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Swing-Out
• Exterior Dimensions
• Wheelbase (in): 135.00
• Length, Overall w/rear bumper (in): 224.10
• Width, Max w/o mirrors (in): 79.20
• Height, Overall (in): 83.90
• Overhang, Front (in): 39.70
• Overhang, Rear w/bumper (in): 49.40
• Ground to Top of Load Floor (in): 27.80
• Ground Clearance, Front (in): 11.00
• Ground Clearance, Rear (in): 7.10
• Rear Door Opening Height (in): 49.40
• Rear Door Opening Width (in): 57.00
• Side Door Opening Height (in): 47.90
• Side Door Opening Width (in): 44.10
• Step Up Height - Front (in): 19.40
• Step Up Height - Side (in): 19.80
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.60
• Cargo Area Length @ Floor to Seat 1 (in): 126.20
• Cargo Area Length @ Floor to Seat 2 (in): 89.13
• Cargo Area Length @ Floor to Seat 3 (in): 57.16
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.40
• Cargo Box (Area) Height (in): 51.80
• Cargo Volume to Seat 1 (ft³): 216.2
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): 92.1
• Cargo Volume to Seat 4 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 39.80
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Second Head Room (in): 38.40
• Second Leg Room (in): 36.30
• Second Shoulder Room (in): 68.60
• Second Hip Room (in): 68.60
• Third Head Room (in): 38.50
• Third Leg Room (in): 36.60
• Third Shoulder Room (in): 65.80
• Third Hip Room (in): 63.30
• Fourth Head Room (in): 37.60
• Fourth Leg Room (in): 36.60
• Fourth Shoulder Room (in): 69.10
• Fourth Hip Room (in): 65.70
• Summary
• Vehicle Name: Chevrolet Express Passenger
• Body Style: Passenger Van
• Body Code: ZW9
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 13.9 (2016)
